SSIS Tutorial — from Basics to
Advanced Development
SQL Server Integration Services is a versatile data integration tool that forms part of the Microsoft SQL Server database software. Utilized extensively in data warehousing projects, SSIS facilitates the Extraction, Transformation, and Loading (ETL) of data, making it invaluable for managing complex data integration scenarios across various sources. This comprehensive guide explores the basics of SSIS, delves into its architecture, and provides insights into its practical applications, aiming to equip you with the knowledge to efficiently build, optimize, and integrate data solutions using SSIS.
SSIS basics
SSIS is a Microsoft SQL Server database component that enables efficient data integration and workflow applications. It is predominantly used for data extraction and transformation. SSIS ETL capabilities allow users to integrate and transform data from various sources, preparing it for analysis or reporting.
Evolution of SSIS
SQL Server Integration Services has undergone significant transformations since its inception, evolving from a simple data transformation service to a sophisticated and powerful data integration tool.
SSIS was initially launched as DTS with SQL Server 7.0. DTS was primarily designed to help administrators and developers perform basic data import/export and transformation tasks between SQL Server and other OLE DB-supported databases.
Today, SSIS stands as a mature, feature-rich platform that integrates well within the Microsoft data ecosystem and beyond, supporting a wide range of data integration, migration, and transformation tasks. As data environments continue to evolve, particularly with the shift towards cloud and hybrid infrastructures, SSIS is also adapting to meet these new challenges, with more features being developed to facilitate integration across distributed and diverse data sources.
SSIS architecture overview

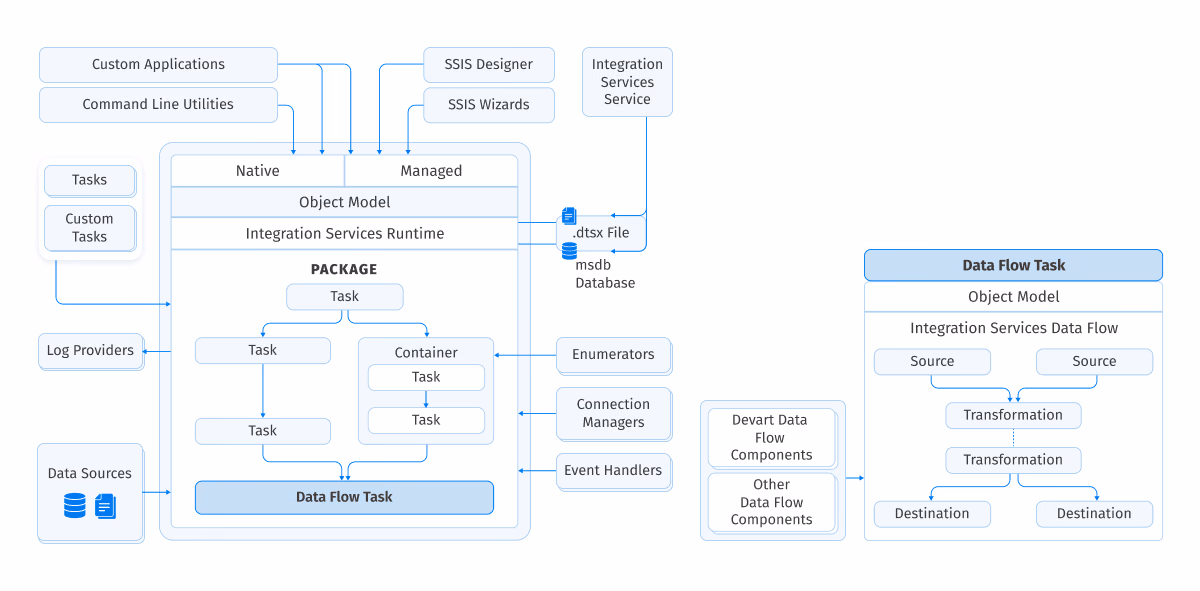

![SSIS architecture overview](images/architecture-overview.jpg)
SSIS architecture includes several components, such as Control Flow, Data Flow, Event Handler, Package Explorer, and Parameters, which work together to facilitate complex data integration tasks. Each component in SSIS serves a specific function, from managing workflow execution to handling data transformations and events.
SSIS in action
Businesses can improve their data management capabilities, ensuring data is accurate, available, and ready for analysis and decision-making. Here are some common applications of SSIS in action.
Data import/export
SSIS simplifies importing data from various sources and exporting data to different destinations. This is necessary for organizations that consolidate data from multiple systems or distribute data to different platforms.
- Importing data: SSIS can import data from flat files, Excel spreadsheets, XML files, and other databases. This helps centralize data from diverse sources for analysis and reporting.
- Exporting data: Data can be exported to databases, clouds, and various formats like SQL, CSV, and XML, making it easier to share and utilize data across different applications and stakeholders.
Data backup
Regular data backups are important for data protection and disaster recovery.
- Automated backups: SSIS allows you to schedule and automate database backup tasks, ensuring backups are performed regularly without manual intervention.
- Backup management: SSIS can also help manage and organize backup files, move them to secure storage locations, and even integrate with cloud solutions for offsite backups.
Data replication
Data replication involves copying and maintaining database objects in multiple databases, ensuring consistency and availability across different locations.
- Real-time replication: SSIS can replicate data from one database to another in real time, keeping databases updated. This is particularly useful for high availability and disaster recovery scenarios.
- Data distribution: By replicating data to different geographical locations, businesses can ensure faster access for users in various regions, improving performance and reliability.
Data integration
One of SSIS's core functionalities is integrating data from multiple sources into a unified system. This is critical for businesses that must aggregate data for comprehensive analysis and decision-making.
- Data aggregation: SSIS can combine data from various sources, including databases, flat files, and cloud services, into a single, cohesive dataset. This is essential for creating data warehouses and data marts.
- Data transformation: As data is integrated, SSIS can apply transformations to clean, standardize, and enrich the data, ensuring it is suitable for analysis and reporting.
Data synchronization
Keeping data synchronized across different systems is vital for maintaining data integrity and consistency. SSIS can automate the synchronization process to ensure data changes are reflected across all relevant systems.
- Bidirectional synchronization: SSIS can manage bidirectional data synchronization, ensuring that changes in one system are propagated to other connected systems and vice versa.
- Incremental updates: SSIS minimizes the load on systems and ensures efficient data synchronization by tracking and applying only the changes (inserts, updates, deletions) since the last synchronization.
Supported data sources
Devart SSIS Data Flow Components offer enhanced connectivity solutions that provide integration with various data sources not natively supported by Microsoft SSIS. These components are designed to extend the functionality of SSIS, allowing for effective data manipulation and integration with systems like Salesforce, Oracle, MySQL, PostgreSQL, and many others.
Here's how these components can be used:
Direct integration with CRM and cloud systems
SSIS capabilities are not limited to traditional data sources; they also offer robust solutions for integrating with CRM systems and various cloud platforms. This flexibility is important for businesses operating in diverse IT environments that need to aggregate and synchronize data across multiple platforms.
Data migration between different database systems
Businesses can easily transfer data between different database platforms using components like Oracle and MySQL, aiding in database migration projects or task synchronization.
Enhanced performance and connectivity options
These components are optimized for speed and provide additional connectivity options, ensuring more efficient data processing and integration than native SSIS components alone.
SSIS task types
SSIS offers a wide variety of tasks that can be used to design comprehensive data integration and workflow solutions. These tasks are categorized into several types, each serving specific purposes in the ETL process. Below is a detailed overview of the main types
available in SSIS:
Task name | Decsription |
---|---|
Execute SQL Task | Executes SQL statements against a relational database. |
File System Task | Manages file system operations like copying, moving, or deleting files. |
FTP Task | Facilitates file transfers to or from an FTP server. |
Script Task | Allows for custom code execution using VB.NET or C#. |
Send Mail Task | Sends email notifications. |
Execute Package Task | Runs another SSIS package. |
Bulk Insert Task | Quickly loads large amounts of data into a SQL Server table. |
Analysis Services Processing Task | Processes Analysis Services objects. |
Execute Process Task | Runs an external application or batch file. |
Web Service Task | Executes web service methods. |
XML Task | Parses and processes XML data. |
Message Queue Task | Sends or receives messages from Message Queuing (MSMQ). |
Data Flow Task | Manages the flow of data and includes options for transformation as data moves. |
Aggregate | Performs aggregation functions such as SUM, COUNT, AVG, etc. |
Conditional Split | Routes data rows to different outputs based on conditions. |
Data Conversion | Converts data types. |
Derived Column | Creates new columns or modifies existing ones using expressions. |
Lookup | Joins data from another source based on a key. |
Merge | Combines two sorted datasets into one. |
Merge Join | Performs joins between two sorted datasets. |
Multicast | Creates multiple copies of the data. |
Sort | Sorts the dataset based on specified columns. |
Union All | Merges multiple datasets into a single dataset. |
Analysis Services Execute DDL Task | Executes Data Definition Language statements for Analysis Services. |
Data Profiling Task | Analyzes data quality. |
Transfer Database Task | Transfers databases between SQL Server instances. |
Transfer SQL Server Objects Task | Transfers SQL Server objects (tables, views, stored procedures, etc.) between databases. |
WMI Data Reader Task | Runs WMI queries and returns information from the Windows Management Instrumentation. |
WMI Event Watcher Task | Monitors for WMI events and triggers actions based on those events. |
Control Flow tasks

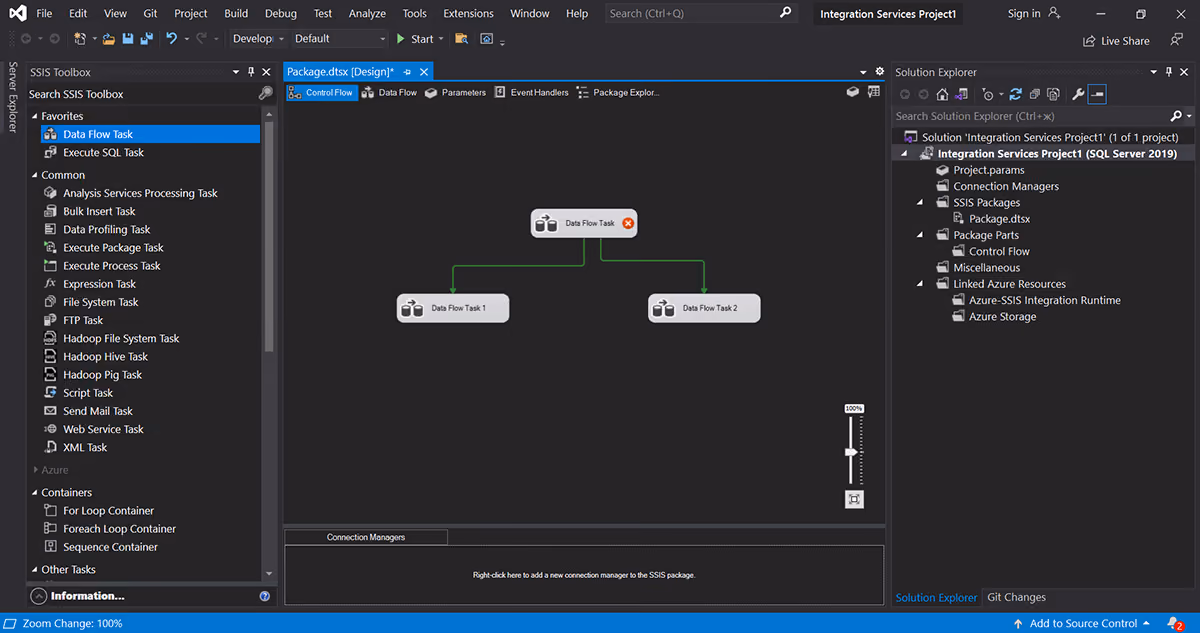

![Control Flow tasks](images/control-flow-tasks.jpg)
Control Flow tasks manage the workflow of an SSIS package. They determine what happens during the package execution, directing how and when each task within the package runs. Examples of Control Flow Tasks include:
- Execution of a SQL query against a database connection, often used to manage database objects or prepare data by running
T-SQL statements. - Loading large volumes of data into a SQL Server table from a file.
- Operations on files and directories in the file system, such as moving, deleting, or renaming files.
- Execution of custom scripts written in C# or VB.NET, providing flexibility to perform functions that are not available through
built-in tasks.
Data Flow tasks

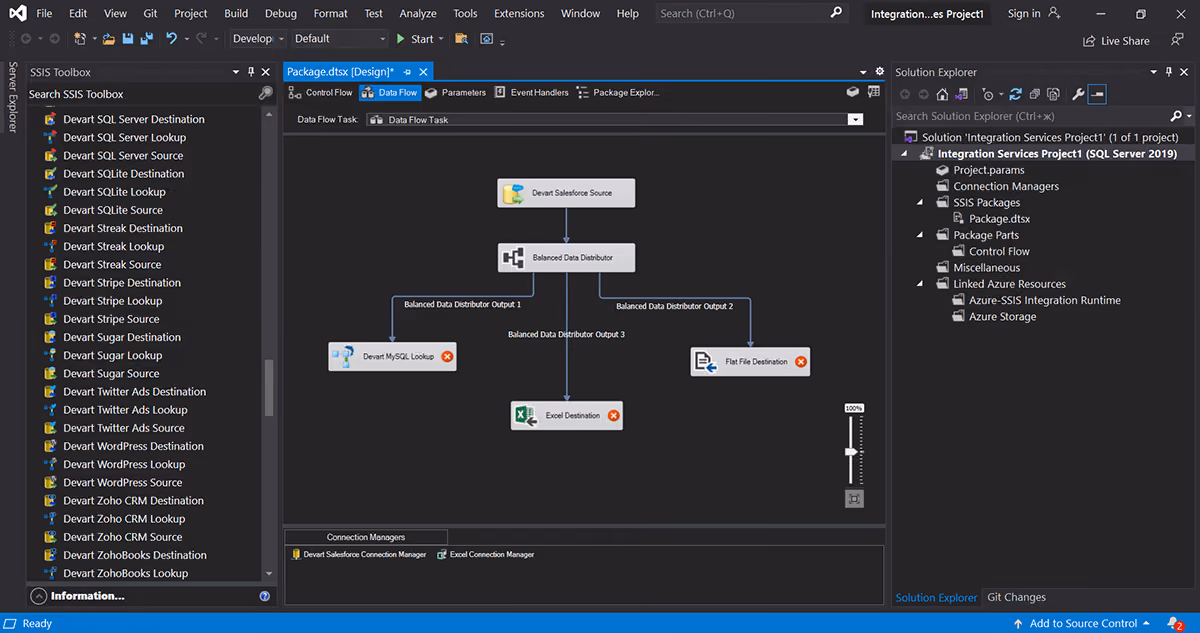

![Data Flow tasks](images/data-flow-tasks.jpg)
Data Flow tasks are the backbone of the data transformation capabilities in SSIS. They enable the movement, transformation, and consolidation of data from various sources to different destinations. Key aspects of Data Flow Tasks include:
- Management of the data flow and provision of options for transformation as the data moves from sources to destinations. This is where data extraction, transformation, and load operations are defined.
- Various transformations can be applied to data such as merging, splitting, converting, and aggregating data. These transformations help in cleaning, modifying, and preparing data for loading.
Other task types
In addition to the main categories, there are several other task types that facilitate specific functions within an SSIS package:
- These tasks allow SSIS to interact with SSAS, performing actions like processing analysis services cubes or running DDL commands.
- Sending of email messages from within an SSIS package, which can be used to notify users of package status or errors.
- Execution of web service methods, allowing SSIS to interact with external web services and use their functionality as part of the data integration process.
Development with SSIS
Developing with SSIS involves several stages, from creating a project to configuring tasks and handling data transformations. Here's a detailed look at each step in the development process:
Create an SSIS project

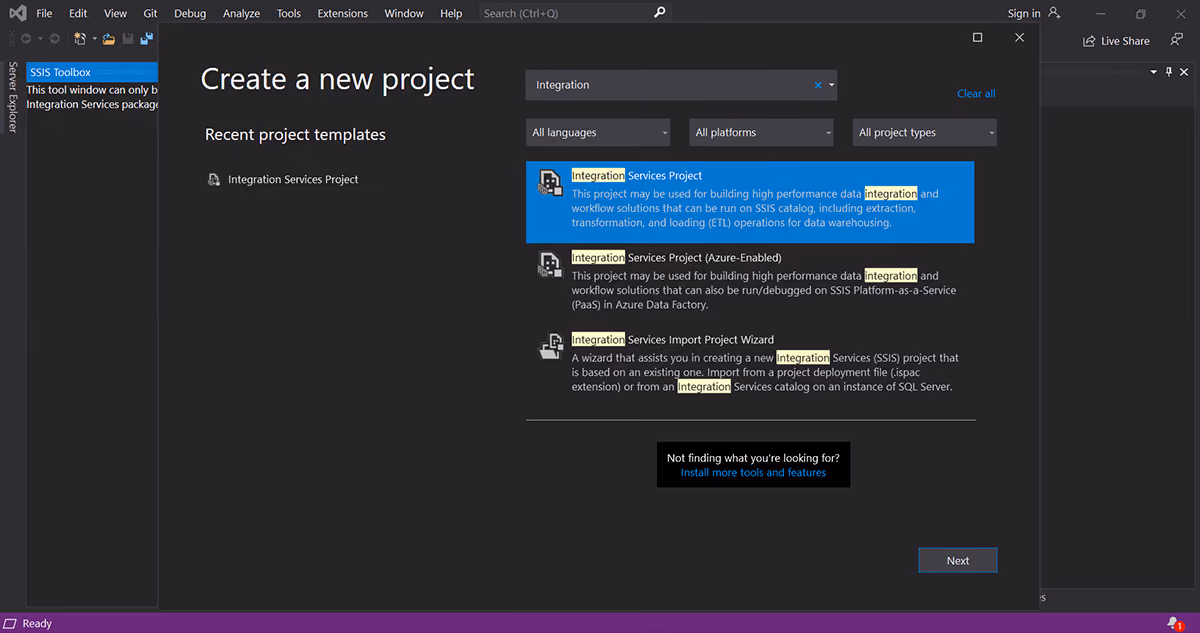

![Create an SSIS project](images/create-ssis-project.jpg)
Development begins by creating a new SSIS project in Microsoft Visual Studio. The SSIS Designer interface is the primary workspace for creating workflows that define how data is processed, transformed, and transferred.
After setting up the project, the next step involves configuring connection managers that define the connections to source and destination data systems. This can include SQL databases, flat files, web services, and other data sources.
Configure Data Flow tasks
![Configure Data Flow tasks](images/data-flow-tasks.jpg)
The Data Flow task is a core component within SSIS that facilitates the setup and execution of workflows that move and transform data. It acts as a container for the data flow pipeline, where you define how data is extracted from source systems, transformed, and then loaded into destination systems. This task is crucial for orchestrating the sequence of operations that the data undergoes during the ETL process.
Within a Data Flow Task, SSIS provides a suite of transformations that can be applied to the data as it moves from its sources to its destinations. These transformations are individual components within the task's pipeline that modify the data stream. Key types of transformations include: sorting and aggregation, merging and conversion, data cleaning, and conditional splitting.
Manage data transformation
Transformations are set up through the data flow interface, where developers can drag and drop different transformation components into the data flow area. Each transformation can be configured to perform specific tasks, such as converting data types, calculating summaries, or applying conditional logic.
SSIS includes features for debugging and optimizing the data flow. Breakpoints can be set, and data can be sampled at various points in the flow to inspect it during execution. Performance features such as buffer tuning and parallel processing are available to enhance the speed and efficiency of data transfers.
Advanced SSIS features
Event handlers can perform actions based on runtime events (e.g., error, warning) to enhance control over the execution of an SSIS package. These are useful for implementing custom logging, error handling, or task-specific actions when certain events occur.
SSIS allows the use of parameters and variables to make packages more dynamic and adaptable to different scenarios without altering the core package logic. Parameters can be configured to accept values at runtime, which is particularly useful for packages that need to be executed repeatedly with varying input conditions.
Once development and testing are completed, SSIS packages can be deployed to SQL Server or the SSIS catalog and scheduled to run at specific intervals using SQL Server Agent. This automation is crucial for operations like nightly data refreshes in a data warehouse.
Advantages of using SSIS
SSIS offers numerous advantages for data integration and ETL processes, making it a preferred choice for many organizations. Here are some key benefits:
Comprehensive ETL tool
SSIS is a full-fledged ETL tool that supports a wide range of data types, services, and databases. It is not limited to any specific type of data or platform, allowing it to handle complex data integration scenarios across diverse environments. Whether you need to process structured, semi-structured, or unstructured data, SSIS provides the necessary components to manage these tasks efficiently.
Secure and reliable infrastructure
SSIS operates on the owner's infrastructure, ensuring that data remains under the control of the organization. Unlike cloud-based ETL solutions, SSIS does not transmit data to third-party servers, enhancing data security and compliance. This on-premises approach guarantees that sensitive information is managed exclusively by the owner, without relying on external services.
Cost-effective maintenance
One of the significant advantages of SSIS is its cost-effectiveness. Since SSIS runs on local infrastructure, there are no recurring costs associated with cloud infrastructure usage. Organizations can leverage existing hardware and software investments, reducing overall expenses and avoiding the variable costs of cloud services.
Unlimited data volumes
Unlike many cloud services that impose limits on data volumes or charge based on usage, SSIS has no inherent restrictions on the amount of data it can process. This makes it an ideal choice for large-scale data integration projects where data volumes can be substantial and grow over time.
User-friendly GUI
SSIS provides a graphical user interface for designing and configuring data workflows. The SSIS Designer in Visual Studio allows users to drag and drop components, making it easy to set up complex ETL processes without extensive coding. The GUI supports a wide range of built-in components for various tasks, simplifying the development process.
Extensibility
SSIS is highly extensible, allowing developers to create custom components to extend its functionality. If the built-in components do not meet specific requirements, custom scripts and transformations can be developed using .NET languages like C# or VB.NET. This flexibility enables SSIS to adapt to unique business needs and complex data scenarios.
Should you use SSIS?
The decision to use SSIS should be based on a thorough analysis of your organization's data integration needs, existing infrastructure, and future growth expectations. It's also critical to weigh the total cost of ownership and potential ROI against those of alternative solutions. By carefully evaluating these factors, organizations can make informed decisions that best suit their specific requirements and strategic goals.
Conclusion
SSIS is a robust data integration tool offering a wide range of capabilities to facilitate effective data management and integration. Whether you are looking to integrate, transform, or manage your data, SSIS provides a comprehensive suite of tools to accomplish these tasks efficiently. Consider exploring our Devart SSIS Data Flow Components for detailed insights and components.
